ASRS & Shuttle Pallet Racking

Your need:

A highly accurate solution to cater for Automated Storage and Retrieval Systems (ASRS), high-bay warehouses, semi-automatic shuttle systems and mezzanine floors.

Our solution:

The Dexion 808 system can reach 60m in height and is a fully bolted system. Profiles can be manufactured with continuously punched holes (50mm pitch) or manufactured with the holes punched at specifically required positions. In high seismic zones, the project solution is tailor-made to the region to provide customers with added assurance and safety.

Vital statistics:

Average locations used - 80%

Immediate accessibility - Up to 100%

Stock rotation - Good

Average floor area by pallet position (sqm) - 0.70

HDS Shuttle

Your need:

You have a low SKU count and large batches. Stock can be either highly active or static but storage density is a major feature you require. You typically despatch by batch and use either First In, First Out or Last In, First Out.

Our solution:

The Dexion HDS Shuttle offers high-density pallet storage without forklift trucks entering the system. It makes the most of limited space and forklift truck fleets. Dexion HDS Shuttle units deposit and retrieve pallets within the system as required.

Vital statistics:

Unload Time - 3 sec

Loaded Speed - 35m / min

Unloaded Speed - 70m / min

Lift Capacity - Up to 2,000kg

Operational Temperature -

Ambient: 0ºC to +50ºC / Cold Store: -35ºC to 0ºC

Configuration - 4 or 8 Wheel Options

Dexion HDS Shuttle Battery Charger

Dexion HDS Shuttle Smart Battery Management Station

HDS 4Way Shuttle

Your need:

To store a low number of SKUs in a very high storage density with high stock movement. You are typically in the Food & Beverage, eCommerce, Medical or 3PL industries.

Our solution:

The Dexion HDS 4 Way Shuttle is a deep lane storage and retrieval system. The shuttle is able to move multi-directionally on X,Y & Z axis. This allows the shuttle to change lanes and levels without the need for a forklift to constantly move the shuttle, greatly reducing labour costs and improving warehousing efficiency.

The system can be semi automated or fully automated and integrated with a WMS or WCS. The racking design of this solution greatly increases storage capacity and space utilisation, which is 3-4 times larger than traditional racking systems.

Vital statistics:

Unload Time - 2.5m/s

Shuttle Weight - 350kg

Lift Capacity - 1,500kg

Use duration per single charge - 6-8 hours

Control System - PLC

Operational Temperature - Ambient: 0ºC to +50ºC / Cold Store: -25ºC to 0ºC

Shuttle Dimensions (LxWxH) - 1076 x 940 x 150 mm

Warehouse Management Systems

User-friendly, anywhere, anytime control of your warehouse operation

Dexion RDS LT WMS

    • Improved Storage utilisation and product slotting via automated ABC analysis of stock

    • Improved product flow and efficiency from receiving through the put-away process

    • Picking efficiency and accuracy using radio frequency devices and barcode identification

    • Accuracy of stock location and inventory – full track and trace of every product in real-time

    • Useful operator friendly dashboards and information for supervision and management in real-time

    • Visibility of warehouse resources and performance for every task

    • Hosted via local server or cloud based instance

    • Browser based allowing easy access anywhere any time

    • Operates on standard RF devices using android or IOS

    • Simple interface using CSV files as standard (others available)

Dexion RDS LT WMS

The Warehouse Management System developed for small and medium sized businesses.

The WMS has been designed to streamline warehouse processes with the objective of improving overall efficiencies in warehouse operations. The Dexion RDS LT Warehouse Management System delivers:

  • Traceability and visibility of all tasks in real-time

  • Control of warehouse inventory and operations

  • Simple system integration

  • Hosting in the Cloud or on-site Server

  • Locally developed and supported solutions

Dexion has extensive experience in implementing and deploying WMS systems across all types of business so you can rest assured we’ll deliver a solution that meets your expectations with a rapid ROI.

Dexion RDS

    • The Dexion RDS is a multi-function system that controls the physical and operational aspects of a company‟s distribution centre from receipt of goods, to processing, storage, order fulfilment and despatch in real time. It bridges the gap between enterprise systems and materials handling equipment and is engineered to complement the customer‟s existing systems.

    • RDS provides a single interface to the customer‟s existing ERP or WMS, aggregating multiple features for the varying functions within the warehouse. RDS is modular in design so it delivers maximum flexibility when building a solution. Dexion is able to configure RDS to fit the task, regardless of how simple or complex the application requires.

    • For FMCG distribution centres, the most difficult challenge is completing orders that cover high volume, fast moving and fluctuating quantities of goods, many of which are subject to regular promotions and strict use-by-dates. This, coupled with an economic climate that demands greater efficiencies at lower cost, means that more than ever before these networks require sophisticated storage and retrieval systems.

    • An automated storage and retrieval system (ASRS) can satisfy these rigorous requirements by reducing order fulfilment times and improving order accuracy and efficiency, as well as minimising labour, optimising space, reducing loss and lowering operating costs. In turn, delivery capability improves, as does customer service. Most importantly, ASRSs can offer a return on investment that is often achieved in under two years.

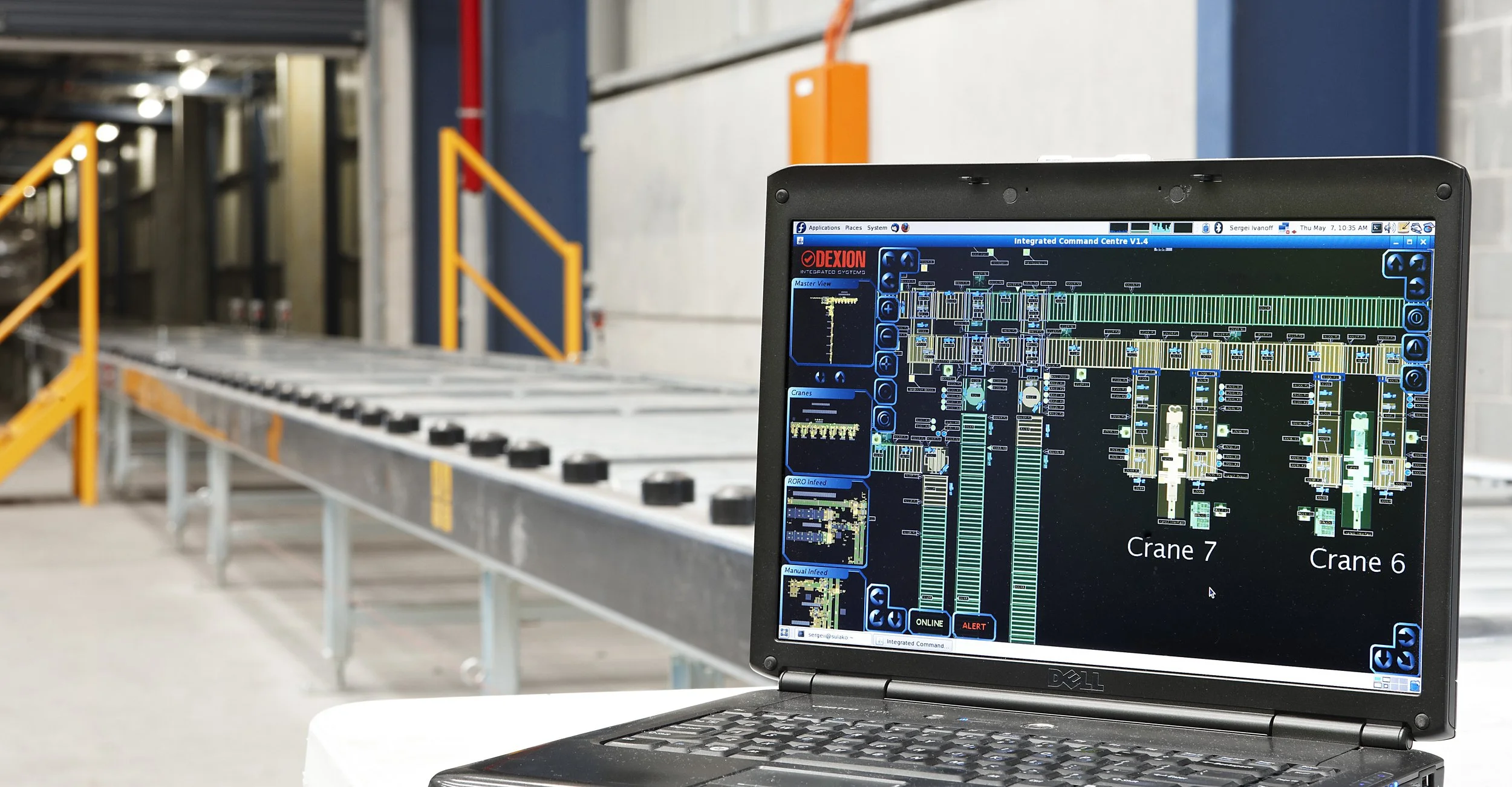

Real-time distribution system (RDS) platform

Bridge the gap between your enterprise system and materials handling equipment

A multi-function control platform that bridges the gap between your enterprise system and materials handling equipment for a highly responsive and efficient warehouse operation. Designed to work with your existing ERP system, RDS delivers real-time management of all materials handling equipment, including paperless technologies, barcode scanners, scales, pick-to-light, voice and Radio Frequency. With a user-friendly interface, simple point-and-click control and web-based, anywhere, anytime access, discover how you can take your warehouse management to the next level with Dexion.implementing and deploying WMS systems across all types of business so you can rest assured we’ll deliver a solution that meets your expectations with a rapid ROI.

Why Implement a Warehouse Management System?

If you can’t measure it, you can’t improve it

Your stock is valuable
Know that you received it, know where it is

Time is money
Improve the efficiency of all warehouse processes

Customer satisfaction is paramount
DIFOT

Information is Key
Your business performance can only
be improved once you know what is
happening - who, how, when, & why

End-to-end process on a single platform
Simplifies and improves your ability to
manage your business more effectively
